CSF 2015+ Volkswagen Golf/GTI (VAG MQB) Quadruple Pass DSG Water / Auxiliary Engine Radiator
CSF 2015+ Volkswagen Golf/GTI (VAG MQB) Quadruple Pass DSG Water / Auxiliary Engine Radiator is backordered and will ship as soon as it is back in stock.
Pickup available at SHOP HQ
Usually ready in 2-4 days
Delivery and Shipping
Delivery and Shipping
Domestic orders typically arrive within 3-7 business days, while international orders may take 7-14 business days. Please note that additional time may be required for items that are drop shipped or back-ordered.
Price Match Guarantee
Price Match Guarantee
We strive to offer competitive pricing and will price match qualifying competitors under certain conditions. Learn more here
CSF 2015+ Volkswagen Golf/GTI (VAG MQB) Quadruple Pass DSG Water / ...
Description
Description

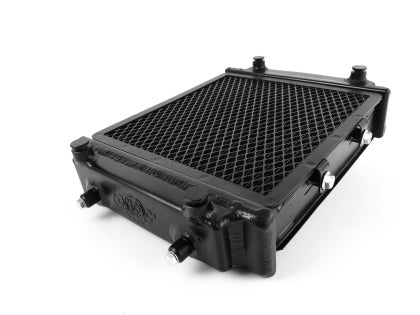

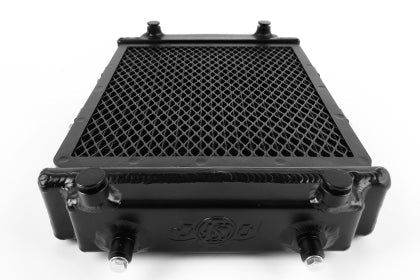

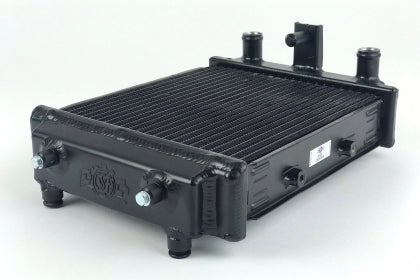

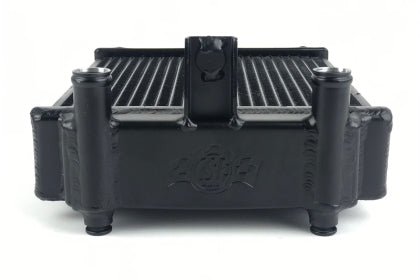

CSF Quadruple Pass DSG Cooler
- 2-row 42mm Core with CSF B-Tube Technology
- Quadruple Pass Design

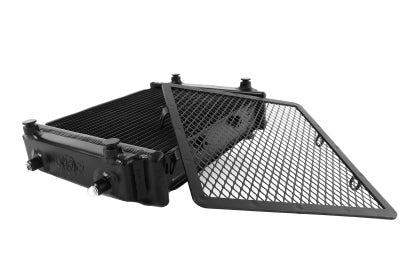

- Removable Rock Guard
- Flow Area Increase = 42%
- Heat Rejection Increase = 36%
- Fits both Right Side (DSG) and Left Side (Auxiliary Engine Water)
The CSF Quadruple Pass DSG Cooler uses a 2-row 42mm core, this utilizes all of the available space. The B-tube design maximizes the tube efficiency in all areas, this tube design is stronger than 0-tubes less material can be used for a lighter more efficient heat transfer whilst the surface area inside the tube is increased by 15% over 0-tubes.
The Quadruple Pass design means coolant passes across the core four times before it exits maximizing the time the radiator has to exchange heat for the coolest outlet temperature.
This unique design results in a flow area increase of 42% and a heat rejection increase of 36%. Helping to keep DSG temperatures consistently cooler for longer. The radiator also comes complete with a removable rock guard for improved longevity against rock hits/debris.
