Zone Offroad 2021+ Ford Bronco 4 Door 4in Adventure Series Lift Kit (Base Shock Package Models Only)

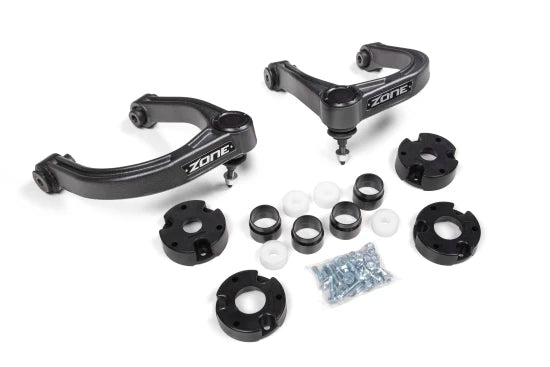

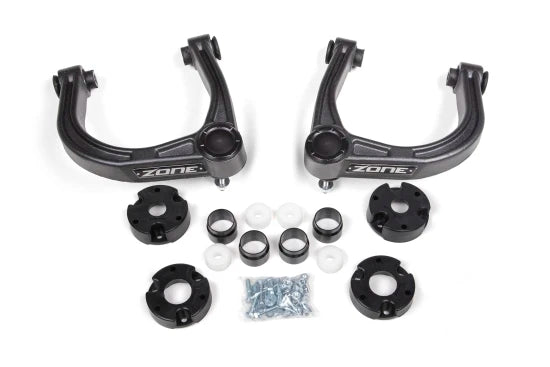

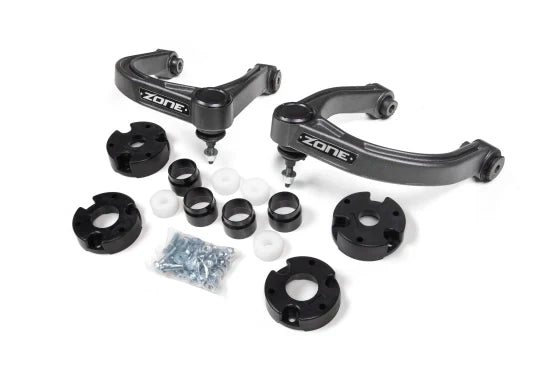

Take your Bronco higher with the 4" Adventure Series lift kit from Zone Offroad. Designed to maintain ride quality, handling and performance with room for larger tires, Kits build off the factory suspension geometry and add 2-piece strut spacers, Adventure Pro series upper control arms and all the necessary hardware to complete the install allowing clearance for 35-37" tires. Get the look and performance with Zone Offroad.

OVERVIEW

• Front Lift Height  4"
• Rear Lift Height   3"
• Front Lift Method  Strut Spacers
• Lift Type Suspension
• Wheel Size          20 x 9
• Back Spacing      5-5.5"
• Max Tire Size     37 x 12.5
• Wheel Size 2       20 x 9
• Back Spacing 2   5-5.5"
• Max Tire Size 2  35 x 12.5
• Is Adjustable      No
• Metal Cutting Required No
• Accommodates Factory Wheels See Notes
• Welding Required            No

FEATURES

Maintains vehicle ride and handling performance while improving offroad capability.

2-piece strut spacer design  maintains ride quality without overextending suspension during down travel

Adventure Pro Series upper control arms for improved strength, travel and maintenance-free operation.

Lifts and levels the stance with clearance for oversized wheels and tires.

Designed for easy installation with ball joint tool include.

Designed and manufactured in the USA.

Includes Factory Protection Plus warranty program.

IMPORTANT NOTES

Wheel and Tire Notes:

37" Tires - Minimal rubbing, see instructions for further tire/wheel fitment detail

275/70 w/ stock 18" Outer Banks Wheels

275/80 w/ stock 17" Black Diamond Wheels

315/70 w/ stock 17" Sasquatch Wheels

285/70 w/ stock 17" Badlands Wheel

F1431 & F1430 can be used ONLY with Base Suspension Package vehicles. This kit is designed to lift the front of the vehicle 4" and rear 3".

CV axle nut may need to be loosened and tightened on the ground with the weight the vehicle.

Although 37" x 12.50" will work at ride height, the tires will still contact the front body mount and possibly rear inner fender through wheel travel and steering lock to lock. If running this size tire and using the full suspension travel, these areas must be addressed.

Does not fit Bronco Sport models.
